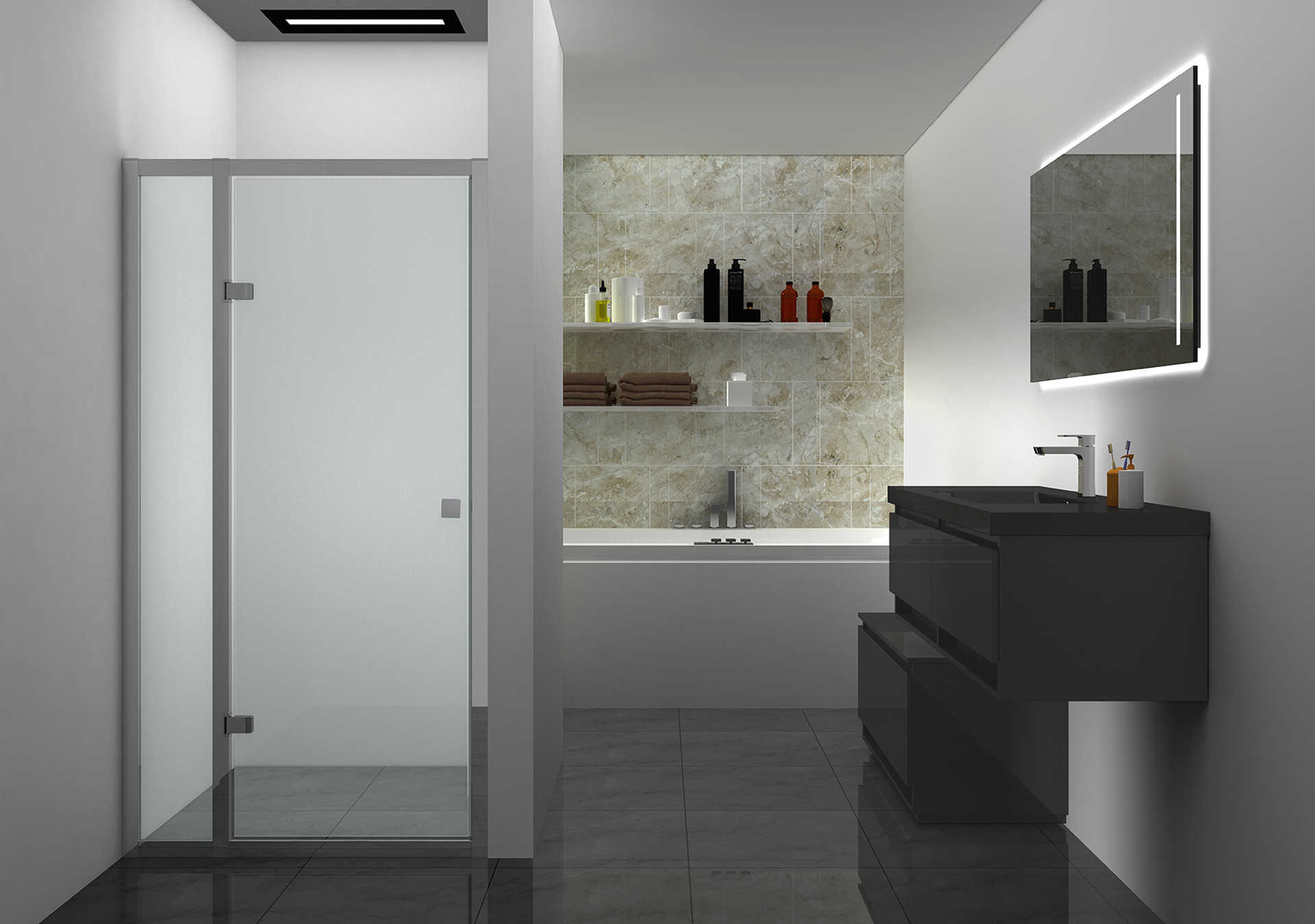

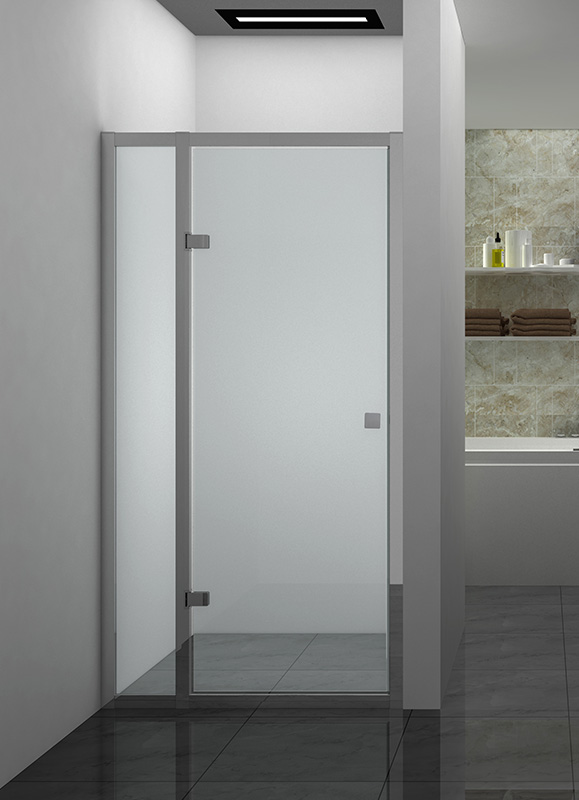

8K1003+8K1007 Framed Hinge Shower Door

8K1003+8K1007

FEATURES HIGHLIGHTS:

· Reversible

· Framed Design

· Zinc Little Square Handle

· 1 Hinge Door And 1 Inline Panel,Outward Open

· Up To 20mm Adjustment On Each Side In Width

· Chrome,Black,Silver Matt,Finishes Available

· Easy Clean Treatment Is Optional

· Available With 8K1008 Side Panel



SPECIFICATIONS:

DIMENSIONS:

· 300/400(8K1003)x700x1900mm Height,(DOOR 670-690mm Adjustment), 540mm Open Size

· 300/400(8K1003)x760x1900mm Height,(DOOR 730-750mm Adjustment), 580mm Open Size

· 300/400(8K1003)x800x1900mm Height,(DOOR 770-790mm Adjustment), 640mm Open Size

· 300/400(8K1003)x900x1900mm Height,(DOOR 870-890mm Adjustment), 680mm Open Size

· 300/400(8K1003)x1000x1900mm Height,(DOOR 970-990mm Adjustment), 820mm Open Size

· Up To 40mm In Width Adjustment

GLASS:

· 8mm Transparent Glass

· Standard Safety Tempered Glass

HARDWARE:

· Chrome finish

· Aluminum Profiles

· Brass Hinges

· U-Type Aluminum Wall Profiles

· F-Type PVC 8mm Water Repellant Profiles

· Framed Design

· Single Hole Zinc Little Square Handle

· With Wall Profiles Caps

STANDARD FEATURES:

· One(1) Hinge Door And One(1) Inline Panel

· Framed Corner Hinge Shower Door

· Multifarious Length combination For right Or Left Door Sliding Installation
